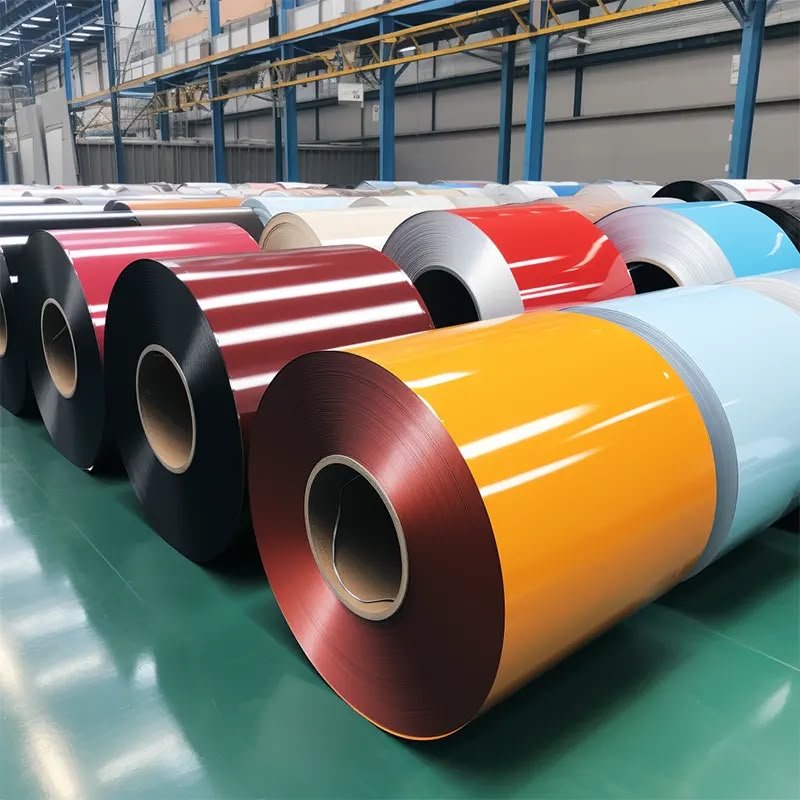

About PPGI & PPGL Coils
PPGI & PPGL Coils are pre-painted steel coils manufactured by applying a high-performance organic paint system over a protective metallic coated steel substrate. These coils provide a combination of corrosion protection, attractive appearance and reliable performance for modern industrial and construction applications.
PPGI uses a zinc-coated steel substrate, while PPGL uses a 55% Aluminium-Zinc alloy coated substrate. The pre-painted surface offers excellent weather resistance, uniform colour finish and suitability for roll forming, roofing, wall panels, HVAC systems and other fabricated products.
Technical Specifications
| Product | PPGI & PPGL Coils |
|---|---|
| Product Type | Pre-Painted Galvanised / Galvalume Steel |
| Thickness | 0.25 mm to 1.5 mm |
| Width | 1220 mm & 1440 mm |
| PPGI Coating | Zinc Coating |
| PPGL Coating | 55% Aluminium-Zinc Alloy |
| GI Coating | GSM 80 & 120 |
| AZ Coating | AZ 70, 150 & 200 |
| Paint System | Baked Organic Primer & Topcoat |
| Supply Form | Continuous Steel Coils |
| Surface Finish | Pre-Painted Smooth & Uniform Finish |
| Customization | Available as per customer requirement |
PPGI & PPGL Coating Technology
PPGI and PPGL coils are produced through a continuous pre-painting process in which the metallic coated steel substrate is cleaned, treated and coated with primer followed by a high-performance topcoat. The coating system is baked under controlled conditions to create a durable and uniform painted surface.
PPGI is based on galvanised steel with a zinc coating, whereas PPGL is based on a 55% Aluminium-Zinc alloy coated steel substrate. The combination of metallic protection and organic coating provides durability, appearance and resistance to environmental exposure.
Target Industries & End Products
1. Target Industries
2. End Products
Key Advantages
High Production Efficiency
Continuous coil supply supports high-speed roll-forming and automated production with efficient material handling.
Uniform Paint Finish
Factory-applied paint provides a consistent colour, smooth appearance and uniform finish across the coil surface.
High Thermal Reflectivity
PPGL provides high solar and thermal reflectivity, making it suitable for selected roofing and building applications.
Weather Resistance
Metallic coating combined with the baked paint system provides dependable protection against weather and environmental exposure.
PPGI & PPGL Product Details
PPGI and PPGL coils are available in different thicknesses, widths, metallic coating levels and painted finishes according to project and customer requirements. PPGI provides zinc-based protection, while PPGL uses a 55% Aluminium-Zinc alloy coating for enhanced performance in suitable applications.
PPGI & PPGL Supply Options
PPGI Coils
Pre-painted galvanised steel coils with a zinc coated substrate and durable organic paint finish for industrial and construction applications.
PPGL Coils
Pre-painted galvalume steel coils using a 55% Aluminium-Zinc alloy coated substrate for demanding applications.
Custom Specifications
Thickness, width, coating, paint finish and supply requirements can be arranged according to customer and project specifications.
Need PPGI & PPGL Coils
For Your Requirement?
Get competitive pricing, technical specifications, coating details, colour options and delivery information according to your project requirements.
Request A Quote
